KT 7 is for all connections when using insulated aluminium or copper conductors.
The design enables live line installation without peeling the insulation of the conductor
| Type | Main Conductor (mm2) | BranchConductor(mm2) | Nominal Current(A) | Outline size (mm) | Weight (g) | Piercing depth(mm) |

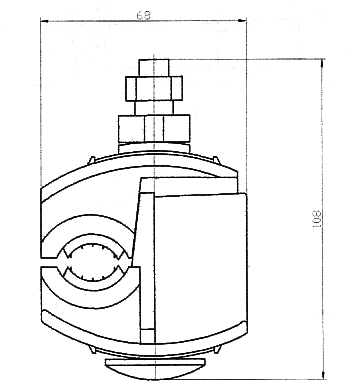

| KT7 | 120-240 | 10-25 | 211 | 56*68*100 | 360 | 1.5-2.5 |
