Overhead Steel Hardware Clevis Ball Adaptors
Ball Clevis
Ball Clevis are used to attach ball and socket insulators to other associated tower hardware.
Material:
Bodu: Galvanized steel
Bolt and nut:Galvanized steel
Split Pin:Stainless steel

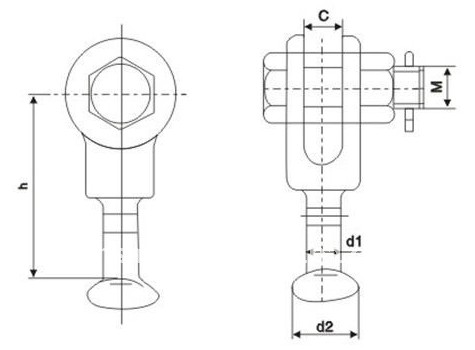

| Type | Dimensions(mm) | Designated size of coupling | Rated Failure load (KN) | ||||
| h | d1 | d2 | M | C | |||
| Q-7U | 89 | 17 | 33.3 | 16 | 18 | 16 | 70 |
| Q-12U | 94 | 17 | 33.3 | 22 | 22 | 16 | 120 |
| Q-16U | 78 | 21 | 41.0 | 24 | 24 | 20 | 160 |
| Q-16UA | 80 | 21 | 41.0 | 24 | 26 | 20 | 180 |
| Q-21U | 102 | 21 | 41.0 | 27 | 30 | 20 | 210 |
| Q-30U | 110 | 25 | 49.0 | 36 | 38 | 24 | 300 |
